Monoblock Refrigeration Units

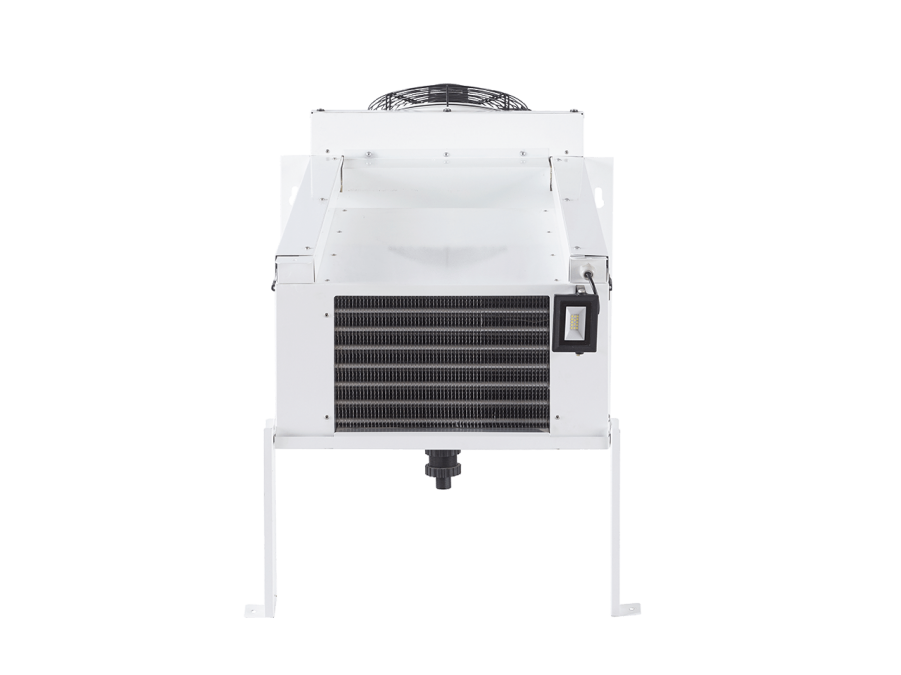

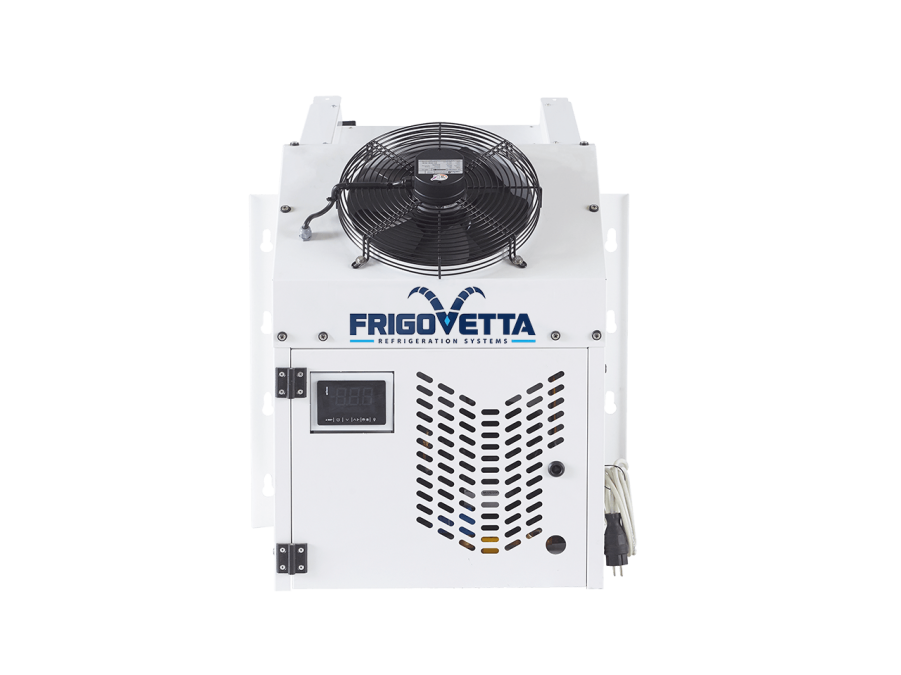

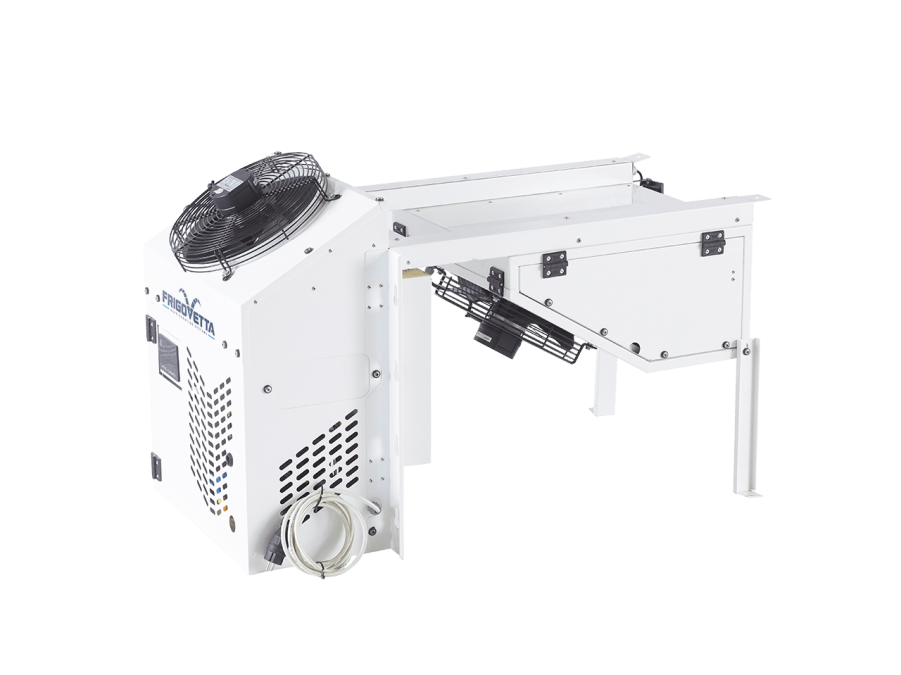

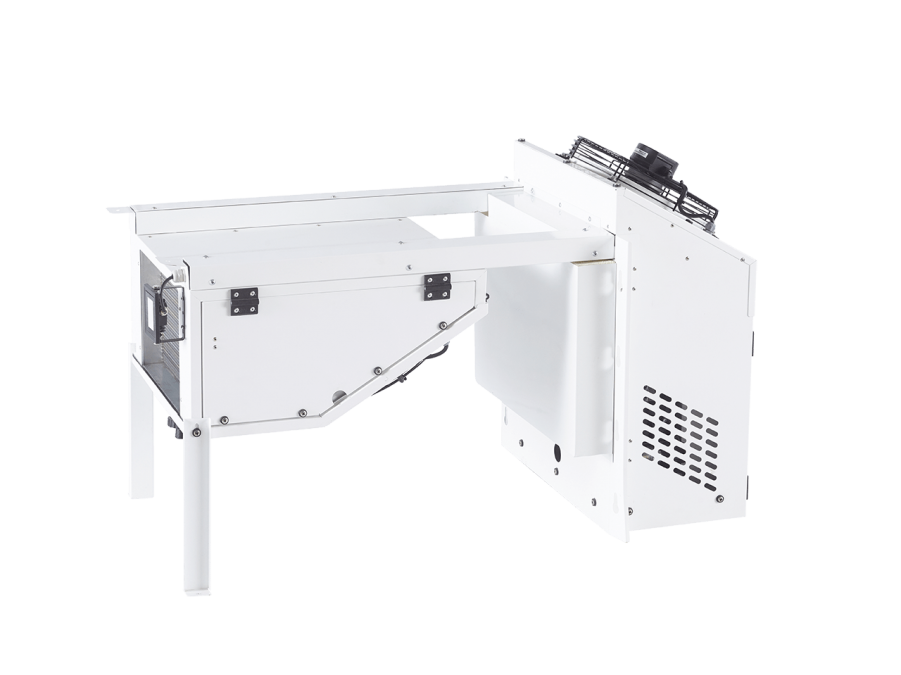

Monoblock refrigeration units combine the compressor, condenser, evaporator and expansion device in a single packaged assembly. This integrated arrangement provides cold room cooling without installing a separate remote condensing unit and evaporator.

Frigovetta Refrigeration System manufactures monoblock refrigeration units for chilled and frozen storage applications. The appropriate model is selected according to room temperature, cooling load and installation conditions.

Integrated Refrigeration for Cold Rooms

The evaporator section absorbs heat inside the cold room, while the condenser section rejects heat outside the refrigerated space. Bringing these components together reduces the need for site-installed refrigerant pipework between separate units.

This packaged construction suits projects where refrigeration equipment must be integrated directly with the cold room enclosure. Unit positioning should allow effective airflow on both sides and sufficient access for maintenance.

Positive-Temperature Cold Rooms

Positive-temperature models serve chilled storage applications above 0°C. These include cold rooms for fresh produce, dairy products, beverages and other goods requiring controlled chilled storage.

The required room setpoint depends on the stored product. Incoming goods, door openings and heat entering through the enclosure all contribute to the cooling load used for model selection.

Negative-Temperature Freezer Rooms

Low-temperature models serve freezer applications below 0°C. Choose a model rated for the required storage temperature and operating conditions, with capacity matched to the room’s calculated refrigeration demand.

Maintaining already-frozen goods differs from freezing incoming products. Where product freezing is required, entry temperature, loading quantity and freezing time need a separate assessment.

Installation and System Coordination

The mounting arrangement must suit the room construction, panel thickness and available space. Condenser ventilation, evaporator airflow, condensate handling and service access should be considered before installation.

As part of Cold Room Refrigeration Systems, monoblock units should be coordinated with suitable Cold Room Panels and doors. Capacity selection must account for operating conditions and heat load, rather than room volume alone.

Share your room dimensions, target temperature, stored products and installation layout with Frigovetta Refrigeration System to discuss a suitable monoblock refrigeration unit.
